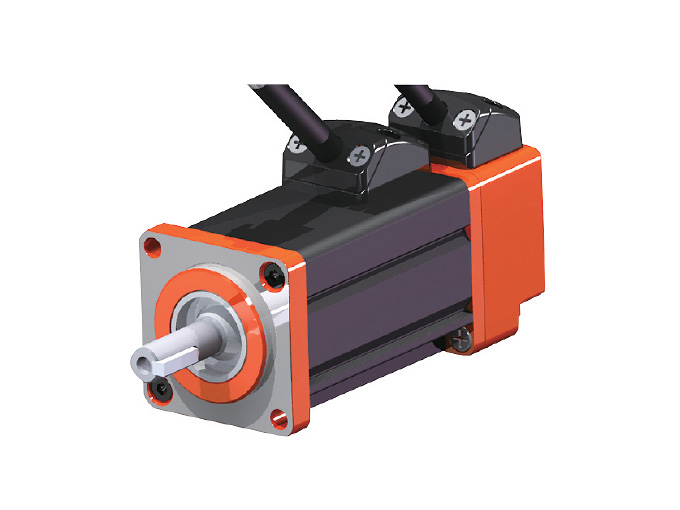

简介: ·采用分段定子技术,可获得更高的转矩惯量比,与SM电机相比可提高30%的转矩;
·采用定子密封技术,提高电机的热效率,温升较上代产品更低;
·全新的产品结构设计,降低产品的转矩波动及齿槽转矩;
·可提供10极转子,齿槽转矩为原8极产品的1/8,运行更平稳、噪音更低
·可提供磁性编码器、旋变、绝对值及增量型光电编码器的便捷选择
电机型号 Parameter | SM40-00230P | SM40-00630P | ||||||||||||||
额定功率 Rated power (W) | 50 | 100 | ||||||||||||||
额定运行电压 Rated Voltage (3Φ VAC) | 220 | 220 | ||||||||||||||
额定电流 Rated Current(A) | 0.65 | 1.2 | ||||||||||||||
额定转速 Rated Speed (rpm) | 3000 | 3000 | ||||||||||||||
额定转矩 Rated Torque(N.m) | 0.16 | 0.32 | ||||||||||||||
峰值转矩 Peak Torque(N.m) | 0.48 | 0.96 | ||||||||||||||
反电势常数 Voltage constant(V/Krpm) | 16.9 | 16.1 | ||||||||||||||
转矩常数 Torque constant(N.m/A) | 0.25 | 0.27 | ||||||||||||||
转子惯量 Rotor Inertia(×10-4 Kg.㎡) | 0.023 | 0.042 | ||||||||||||||
电子时间常数 Electrical Time Constant(ms) | 1.04 | 0.85 | ||||||||||||||
峰值电流 PeaK Current(A) | 1.95 | 3.6 | ||||||||||||||
编码器线数 Encoder resolution(PPR) | 2500 | 2500 | ||||||||||||||
绝缘等级 Insulation Class | B | B | ||||||||||||||
防护等级 Protection Class | IP65(轴伸和引出线端子除外) (Except for shaft and lead terminals) | |||||||||||||||
使用环境要求 Service environment | 环境温度:0~+40°C 环境湿度:相对湿度<85% (无结霜) Operating ambient temperature: 0~+40°C Operating ambient humldity: Below 85% RH, No Freezing | |||||||||||||||
绕组航插定义 Power Plugs definition | 管脚功能 Pin function | U | V | W | PE | |||||||||||
管脚编号 Pin number | 2 | 3 | 4 | 1 | ||||||||||||
编码器航插定义 Signal Plugs definition | 管脚功能 Pin function | 5V | 0V | A+ | B+ | Z+ | A- | B- | Z- | U+ | V+ | W+ | U- | V- | W- | PE |
管脚编号 Pin number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 | |
航插规格 Plug model | 绕组插件型号:MOLEX 39013045 编码器插件型号:AMP 172171-1 Power plugs model:MOLEX 39013045 Signal plugs model: AMP 172171-1 |
